Single E27 LED Aviation Obstruction Light Low Intensity For High Buildings

  • 1
  • 2

Brand Name : Annhung

Model Number : AH-LI/BE

Certification : ICAO, CE, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 1000 pieces per month

Delivery Time : 2-15 days

Packaging Details : Plastic bag with Paper Carton

Type : LED Aviation Obstruction Lights Low intensity

Voltage : 110vac-240vac, 48vdc, 12vdc

Power(W) : 3

IP Rating : IP65

Material : Die casting aluminum

Color : Red

base type : LED

Standard : ICAO( Annex 14) FAA L-810

Working mode : Steady Burning (Fixed)

Contact Now

E27 LED Low-intensity L810 Single Aviation Obstruction Light for High Buildings





This E27 LED Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

E27 Bulb could be found anywhere in whole world, so it could be simply replaced once bulb is broken.



Compliance

 ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light

 FAA L-810





SPECIFICATIONS AH-LI/BE E27 Low-intensity L810 Single Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red(Other color is optional)
Intensity(cd) 10cd (type A), 32.5cd(type B), others optional
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Flash Characteristics Steady-burning
Operation Mode 24hours as standard.
  Dusk-to-dawn Automaticallyoperation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 48VDC or 12VDC or 110VAC or 220VAC
Power(W) 3
Circuit Protection Integrated
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4 inch pipe thread as stadard. 1inch as option
Dimension(mm) 136×136×220
Weight(kg) 0.75
Product Life Expectancy 5 years Plus
Environmental Factors

Ambient Temperature(℃)

-55℃~+70℃

 -55~70
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP65
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Sixth edition July 2013, table 6.3
  Low-intensity Type A/B Obstacle Light
FAA L-810
Options Available
  External photocell
  Powder-coated color
  NVG(Night Vision Goggles) compatitble LED

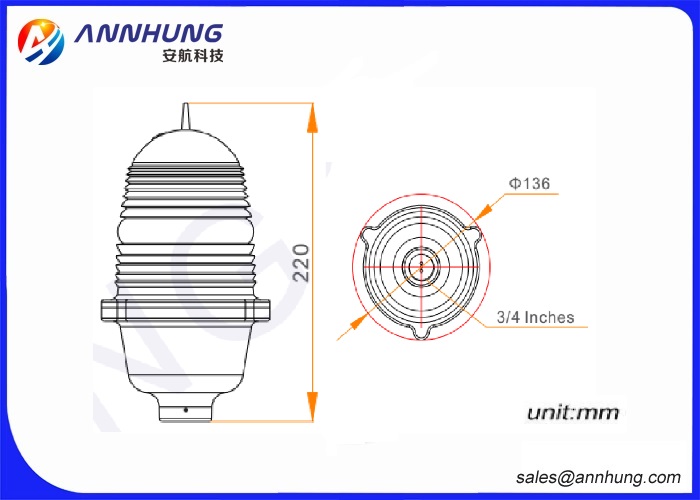

Dimension Drawing



Single E27 LED Aviation Obstruction Light Low Intensity For High Buildings

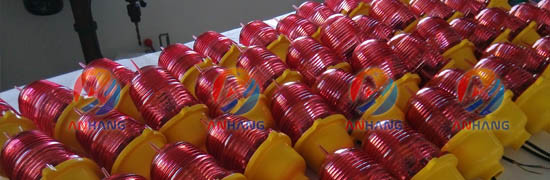

Product Picture





Single E27 LED Aviation Obstruction Light Low Intensity For High Buildings





Single E27 LED Aviation Obstruction Light Low Intensity For High Buildings





Packaging & Delivery



Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.



After-sales service



1. 2 years full warranty, 5 years maintenance since the purchasing date.

2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
