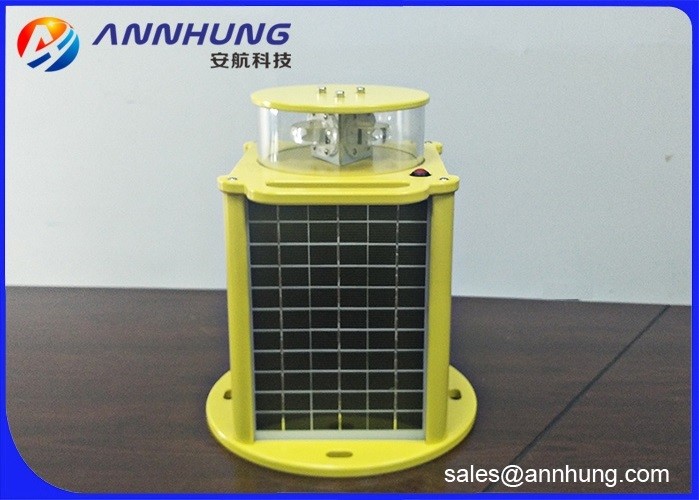

IP67 20W AH-MS/B Solar Aviation Obstruction Light Medium-intensity Type B
Medium-intensity Solar Aviation Obstruction Light adopts low-light but high efficient solar panels integrated design,cooperate with solar lead-acid battery as power supply.The battery adopts advance power management system ,which can provide good protection when battery ’s voltage and temperature too high or too low ,so it can improve the battery’s service life efficiently .
Control circuit adopts micro-power consumption,which reduce controlling circuit ’s power consumption ;Light source adopts high efficient LED chip ,which has specific of high light intensity ,low power consumption ,long service life and so on .
Adopting the design of the portable design,which is convenient for carrying and transportation,especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc.
Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.
Datasheet: AH-MS-B Medium-intensity Type B L864 Solar Aviatio...
Product Application
-High-rise Building
-High Chimney
-marking towers (Telecom, GSM, Microwave & TV)
-High Pole
-Tower Crane
-Wind Turbinebridge
-large-scale port machinery
-large engineer machinery
-wind turbines
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
| Standard | ICAO (Aerodromes Annex 14) Medium-intensity Type B, FAA L-864 |
| Light source | LED |
| Light color | aviation red |
| Working mode | Flash mode (20-60times/minute) |
| Supply voltage | DC12V(Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| LED lifetime | ≥100,000h |
| Power consumption | 20W |
| Intensity | 2,000cd ±25% |
| Operating temperature | -40C ~ +60C |
| Water proof | IP67 |
| Mass | 7.0kg |
| Light Material | Base:die casting aluminum , housing: PC |
