Aluminum Materia Aircraft Warning Sphere 600 Mm / Customized Diameter

Name: Aluminum Materia Aircraft Warning Sphere 600 Mm Customized Diameter
Brand: Anhang
Price: 1 USD

Buy cheap Aluminum Materia Aircraft Warning Sphere 600 Mm / Customized Diameter product

Brand Name : Anhang

Model Number : AH-AWS

Certification : iCAO

Place of Origin : Guangdong, China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 15days

Packaging Details : 3 pcs in one carton

Material : Fiber glass

Diameter : 600 mm or customized

Weight : 6.3

Color : Orange, Red or White

Products name : Aircraft Warning Sphere

Contact Now

Aluminum Materia Aircraft Warning Sphere 600 Mm / Customized Diameter

Aircraft Warning Sphere is Designed to use for Tall transmission lines, eg. 110KV, 220KV, 500KV, transmission electric cables, river-crossing transmission lines to provide the warning sign.

Specification

Standard	ICAO (Aerodromes Annex 14)
Diameter length	600mm
Ball Color	Orange, Red or White
Material	Fiber glass reinforced polyester resin
Character of fiber glass	Tensile strength≥128Mpa
	Bending strength≥230Mpa
	Temperature resistant: 40℃~90℃
Fastening piece	Aluminum material, M10 by 35, M10 by 40
Net Weight	6.3KG

Installation

1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of protecting bars extending 200-300mm beyond the surface of the ball.

2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.

3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position .

4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.

Dimension Drawing

Aluminum Materia Aircraft Warning Sphere 600 Mm / Customized Diameter

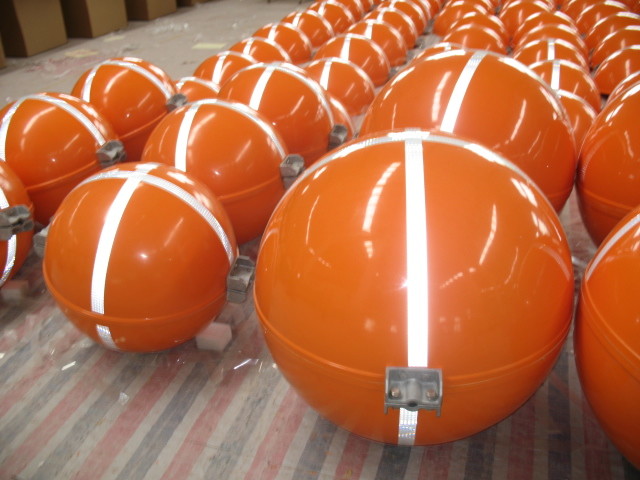

Product Picture

Aluminum Materia Aircraft Warning Sphere 600 Mm / Customized Diameter
